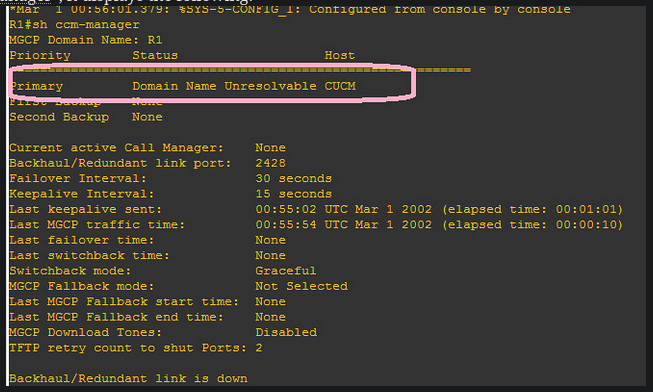

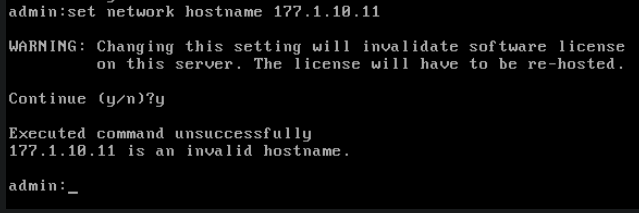

Situation I tried to register my MGCP gateway to my CUCM, but everytime I did a “show ccm-manager”, it displays the following: MGCP 1 Troubleshooting I first thought about an issue about DNS on CUCM. I remembered that, during the CUCM installation, I put CUCM somewhere. So I went to every corner of CUCM admin pages, where I could find the “CUCM” keyword. I changed some settings in Entreprise Parameters. I even tried to change the hostname under the CUCM CLI mode: MGCP 1 Then, I examined what’s happening at the router level, with “debug mgcp events”. I noticed this line: MGCP 1 MGCP 1

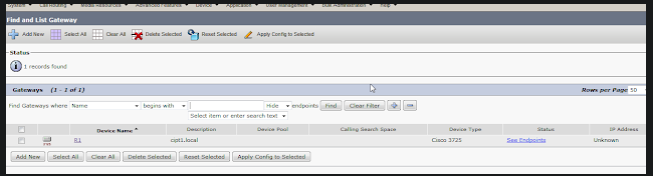

I figured that the gateway could not solve CUCM. I thought that one quick solution was to set up a DNS server on the router. I did a “no ccm-manager config”, then “ccm-manager config”. et voilà: MGCP 1 Sidenote I still don’t know why the gateway IP address shows “unknown” on CUCM :p MGCP 1
