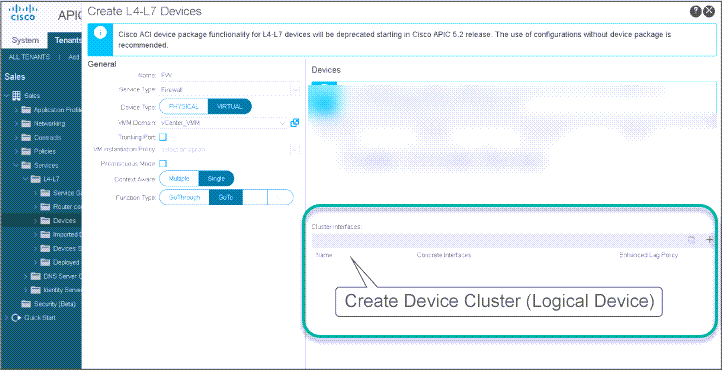

is the logical interfaces of a L4-7 Device Cluster Device. We distinguish Provider Cluster Interfaces and Consumer Cluster Interfaces. The ACI administrator must define them under the Create L4-7 Device page. sc4

Consumer-Side Interface#

The Cluster Interface that will attach directly (or indirectly, in case this is not the first L4-7 Device in the Service Graph Template) to the Consumer-side BD.

Provider-Side Interface#

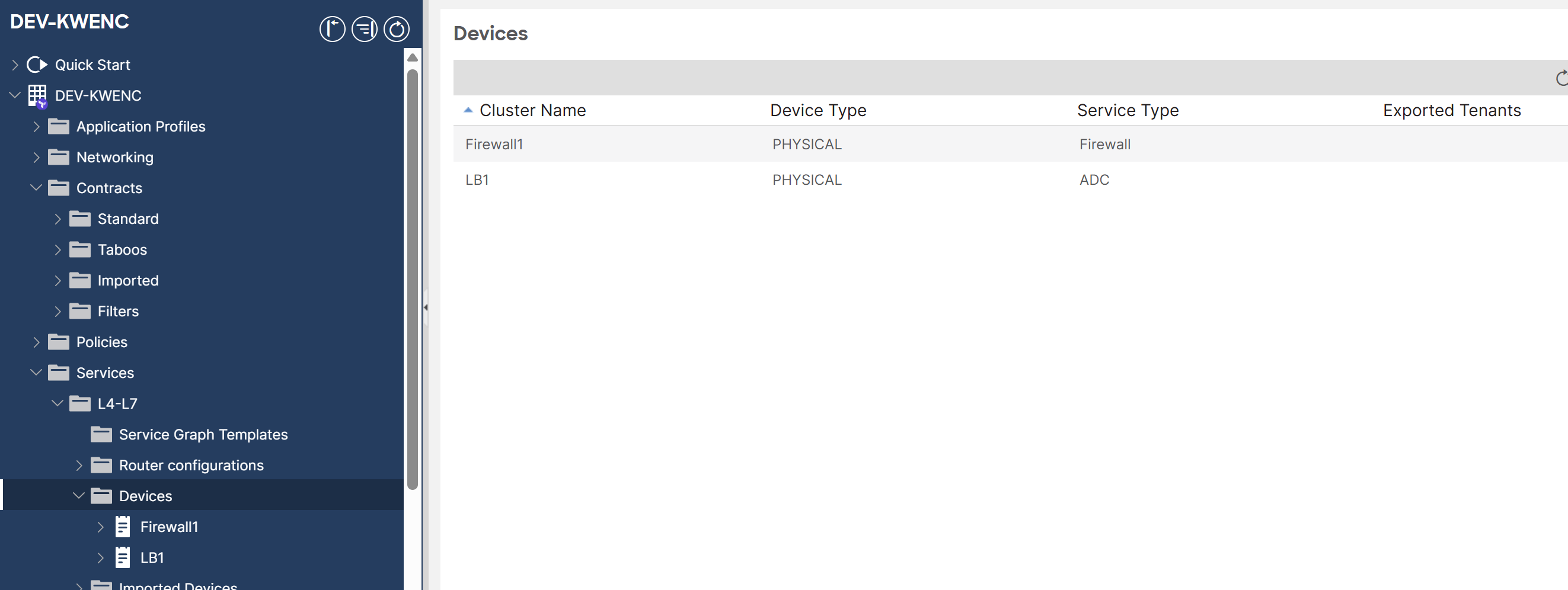

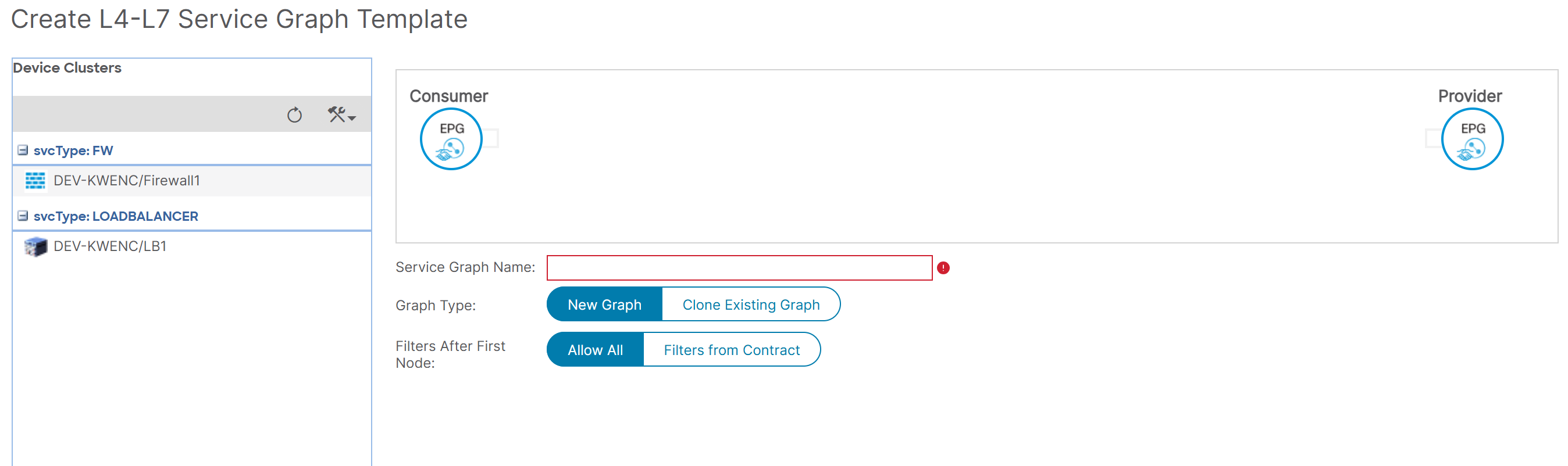

The Cluster Interface that will attach directly (or indirectly, in case this is not the first L4-7 Device in the Service Graph Template) to the Provider-side BD. Any Cluster Device will appear as a draggable element when creating a Service Graph Template. sc4 sc5 ❗ ACI does not detect duplicate IP addresses when two Cluster Devices have the same management IP address or VIP.

Mapping Cluster Interfaces to Concrete Interfaces#

occurs on the Create L4-7 Devices page.
